Parkade 1-10V Dimming
LED Tri-proof Light
1-10V dimming tri-proof light is designed for places where controlling the brightness is essential, making them a suitable option for a variety of settings. This type of light features advanced technology that allows adjusting the brightness by employing a 0/1-10V input signal. This enables further control over the lighting and saves energy by reducing the power consumption of the lights.
LED tri-proof lights are designed to withstand harsh environments, meaning they are waterproof, dustproof, and moistureproof. Therefore, they are ideal for humid or dusty places, such as industrial facilities, garages, parking lots, or warehouses. A dimming feature reduces the amount of light emitted and, consequently, reduces energy consumption, making them a more eco-friendly and cost-effective lighting solution.
Overall, Parkade 0/1-10V dimming tri-proof light offers a versatile and durable lighting solution with a range of applications in different settings. So, it can be a wise decision for those looking for a reliable and efficient lighting solution.
Parkade 1-10V Dimming Tri-proof Light Features
- IP66 Waterproof, IK10 Protection, 94V0 materials

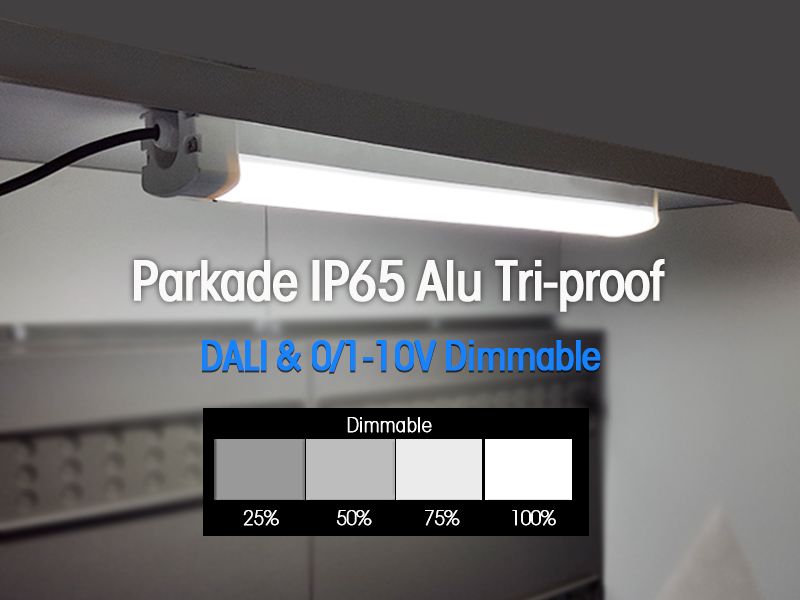

- 0/1-10V soft dimming and flicker free at any brightness
- Unique Design, Aluminum Housing
- Mitsubishi PC Cover with Aluminum PCB
- The dimensions can be customized
- No dark, Non-cracking, Anti-yellowing
- Linkable / Tool free
- High Efficacy: 130lm/w, up to 160 lm/w (+/-10%)
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
Date Sheet
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) |
| SL-A65X2-20-XD | 20 | 2600 | 450 |
| SL-A65X2-30-XD | 30 | 3900 | 750 |
| SL-A65X4-40-XD | 40 | 5200 | 950 |
| SL-A65X4-50-XD | 50 | 6500 | 1200 |
| SL-A65X5-50-XD | 50 | 6500 | 1200 |
| SL-A65X5-60-XD | 60 | 7800 | 1400 |
* Where the first “X” represents diffuser type, it can be F(Frosted), S(Striped)
The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V/100-277V |
| DC output | 30-40V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |
Parkade 1-10V Dimming Tri-proof light Efficacy Version
Cover Standard Premium
Frosted 130lm/w 150lm/w
Striped 140lm/w 160lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

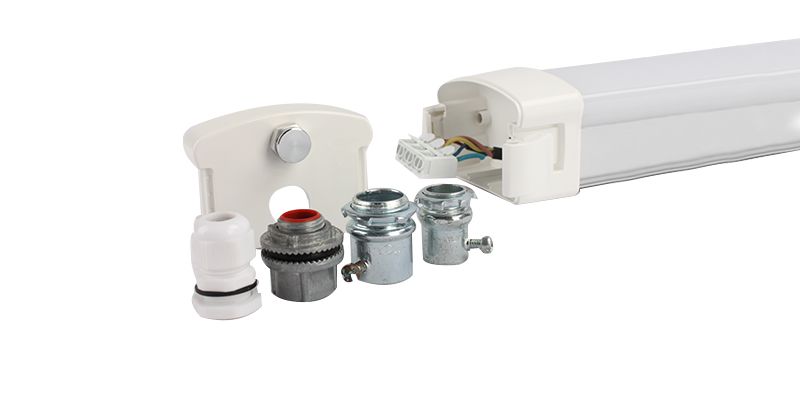

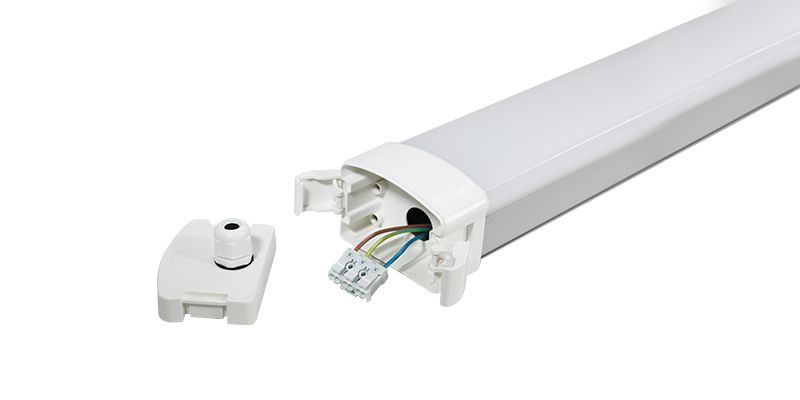

Parkade Details
Guarantee with ShineLong
Response Time
Our response time is around 3 hours,so if you have an urgent problem with your project,you can call the business directly to secure your project.
Reliable Delivery
We have implemented ERP,PMC system management.Sample orders about 7 days,large orders about 15 days,special oeders can be expedited delivery time.
Guaranteed Warranty

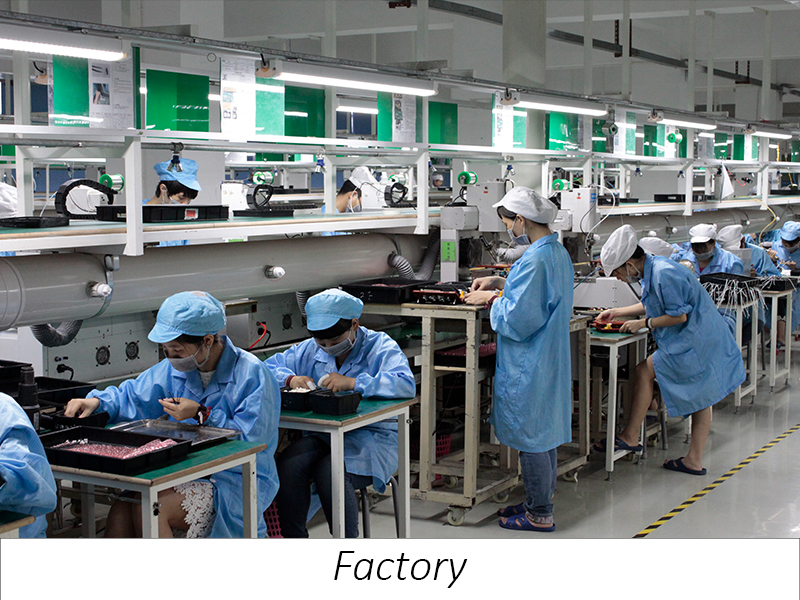

Factory passed ISO9001:2015 international quality management system,all of LED lights have a 5-7 year warranty and all accessories have certifications.
Energy Savings
Up to 70% energy savings over traditional lights,report a 50 percent drop in their energy bill than they would have with conventional lights.
ShineLong's Five Value-added Services
ODM services, brand product modeling, and promotional materials, LED light design, LED power supply customization, lighting software development, LED lights for the full range of qualification certificates for the docking service and billing.
We ShineLong can provide you with value-added services for deep cooperation customers, and ODM services, only need you to provide LED light software and appearance ideas, our R & D team can help you with free design software and product appearance, in addition to LED light power supply can be specially customized, LED lights after the completion of the development of LED certificates samples and information can also be provided for the whole docking, until the LED Lights on the market, at the same time, our marketing department is responsible for 3D modeling and design colleagues, but also according to the idea to design your brand needs to promote promotional materials and videos. Most importantly, ShineLong also provides a billing period for large LED lighting customers.
Come and join us to make LED light installation easier and let ShineLong light fixtures light up the world.
Parkade Series Video

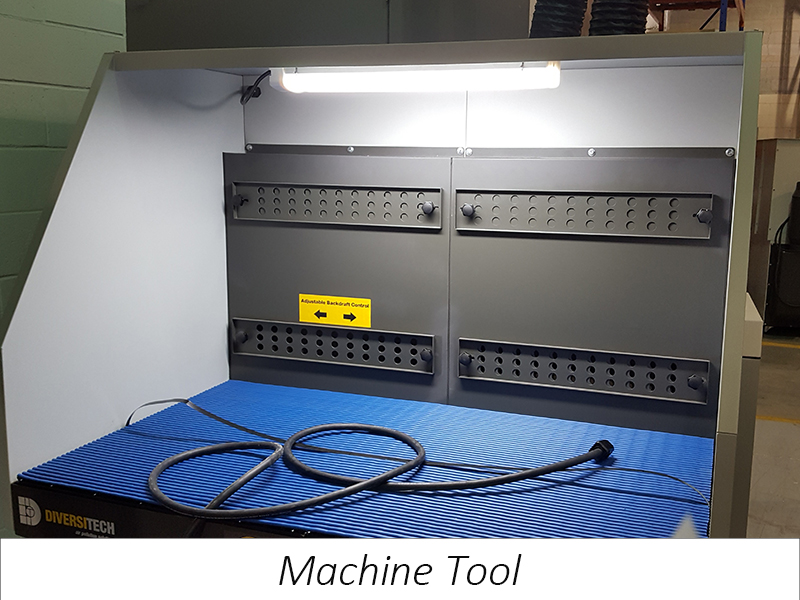

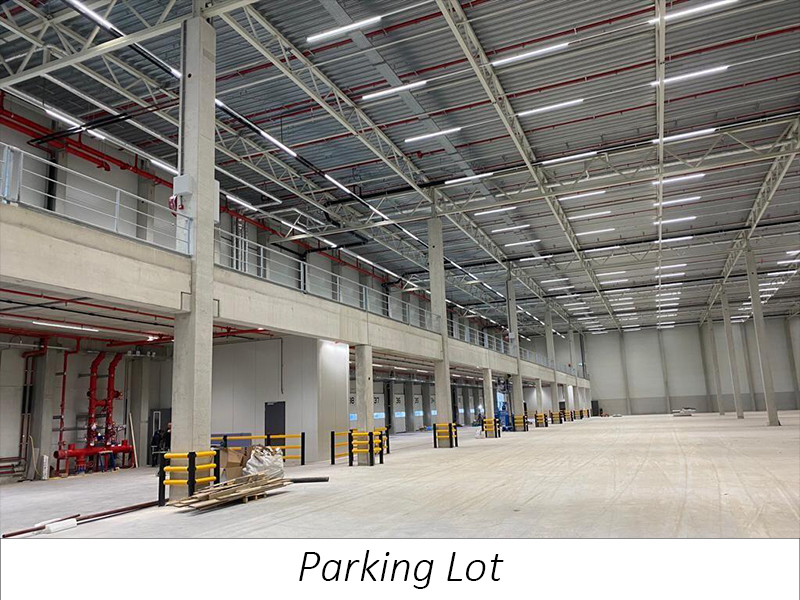

Applications
